Wall Mounted Energy Storage Battery
EverExceed Solar Lithium battery is a smart energy storage solution that can be easily scaled to meet a wide range of needs. By utilizing the latest technology in Lithium lron Phosphate batteries ,it can provide consistent, reliable power for thousands of cycles. The ultra-modern rack mounted & wall mounted design ensure extremely long service life and high reliability in energy storage applications and widely popular with rapid development stance as well.
EP-48100W
Quantity:

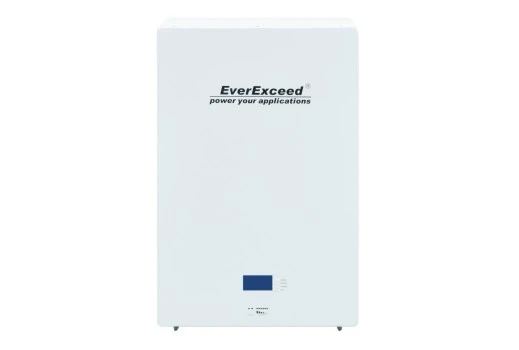

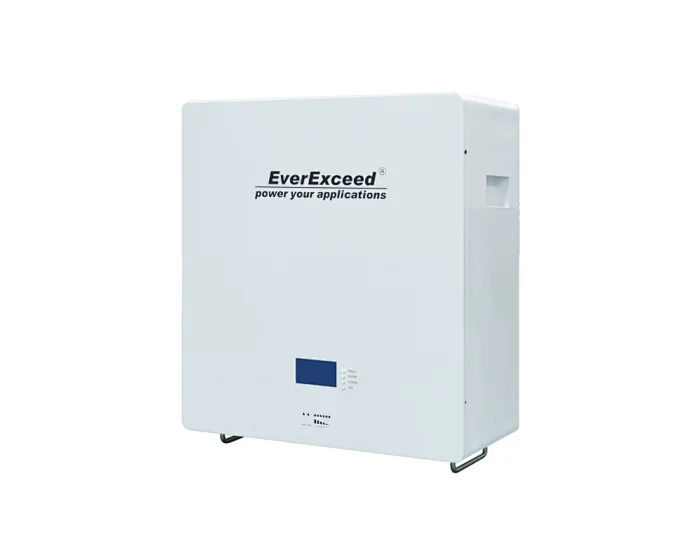

48V 100Ah Home Wall Mounted Energy Storage Battery
Wall Mounted Home Battery Energy Storage 51.2v lithium battery LiFePO4 batteries are perfect choice for your home +energy storage system and SME (Small Medium Enterprise).
Wall Mounted Home Battery Energy Storage 51.2v lithium battery LiFePO4 batteries are perfect choice for your home +energy storage system and SME (Small Medium Enterprise).
Technical features：
 |  |  | ||
| Expansion capability | Easy installation | High reliability | ||
| Parallel connection available for flexible system capacity extension | Suitable for both rack and wall mounted installation | High operational reliability | ||
 |  |  | ||
| Safety | Superior deep cycle ability | Zero maintenance | ||
| No risk of explosion & fire | Superior deep cycle ability provides highly efficient cycling and float service with great energy density | No need for maintenance, saves opex for user |
Product advantages:
>Wide compatibility
Fully compatible with most inverters on the global market,
such as SMA, SolarEdge, Sungrow, Huawei, Victron Energy, Schneider, Growatt,
EverExceed, Ginlong, Sofarsolar, SolaX, East, Deye, etc.'
>Compact Size
Ultra-compact design,low weight;
Wall mounted, save the installation space;
High energy density standby power.
>Long service life and high reliability
15+ years long life design@25°C ;Adopt approved grade A cells to ensure high safety and premium performance of the battery; High operational reliability.
>Modular design
Parallel connection available for flexible
system capacity extension
Technical Data：
| Battery type | LiFePO4 (Lithium iron phosphate battery) | |||
| Battery Model | EP-48100W | EP-48200W | ||
| No.Of Cells In Series | 15 | 16 | 15 | 16 |
| Norminal Voltage | 48V | 51.2V | 48V | 51.2V |
| Norminal Capacity | 100Ah | 200Ah | ||
| Norminal Energy | 4.8KWh | 5.12KWh | 9.6KWh | 10.24KWh |
| Dimension (H x W x D) | 540*495*217 | 780*495*217 | ||
| Weight | 49kg | 53kg | 83kg | 91kg |
| Boos Charge Voltage (Charging Method: CC-CV) | 54V-54.75V | 57.6V-58.4V | 54V-54.75V | 57.6V-58.4V |
| Float Charge Voltage | 52V | 55.2V | 52V | 55.2V |
| Discharge Cut-off Voltage | 40.5V | 43.2V | 40.5V | 43.2V |
| Recommended Charge Current | 50A | 100A | ||
| Max Discharge Current | 100A | 100A | ||
| Working Temperature Range | Discharge: -20℃ to +60℃ Charge: 0℃ to +45℃ Storage: -20℃ to +60℃ | |||
| Cycle Life | ≥ 6000 cycle @ 80%DOD @ 25℃ @ 0.5C rate | |||
| Communication | RS485 / RS232 / CAN | |||
| Compatible Inverter* | SMA, SolarEdge, Sungrow, Huawei, Victron Energy, Schneider, Growatt, EverExceed, Ginlong, Sofarsolar, SolaX, East, Deye, etc.* | |||
| Safety Standard | IEC62619, CE, UN38.3 | |||
| Design Life | 15+ Years @ 25℃ | |||
Applications：
● Solar energy storage; ● Wind energy storage;

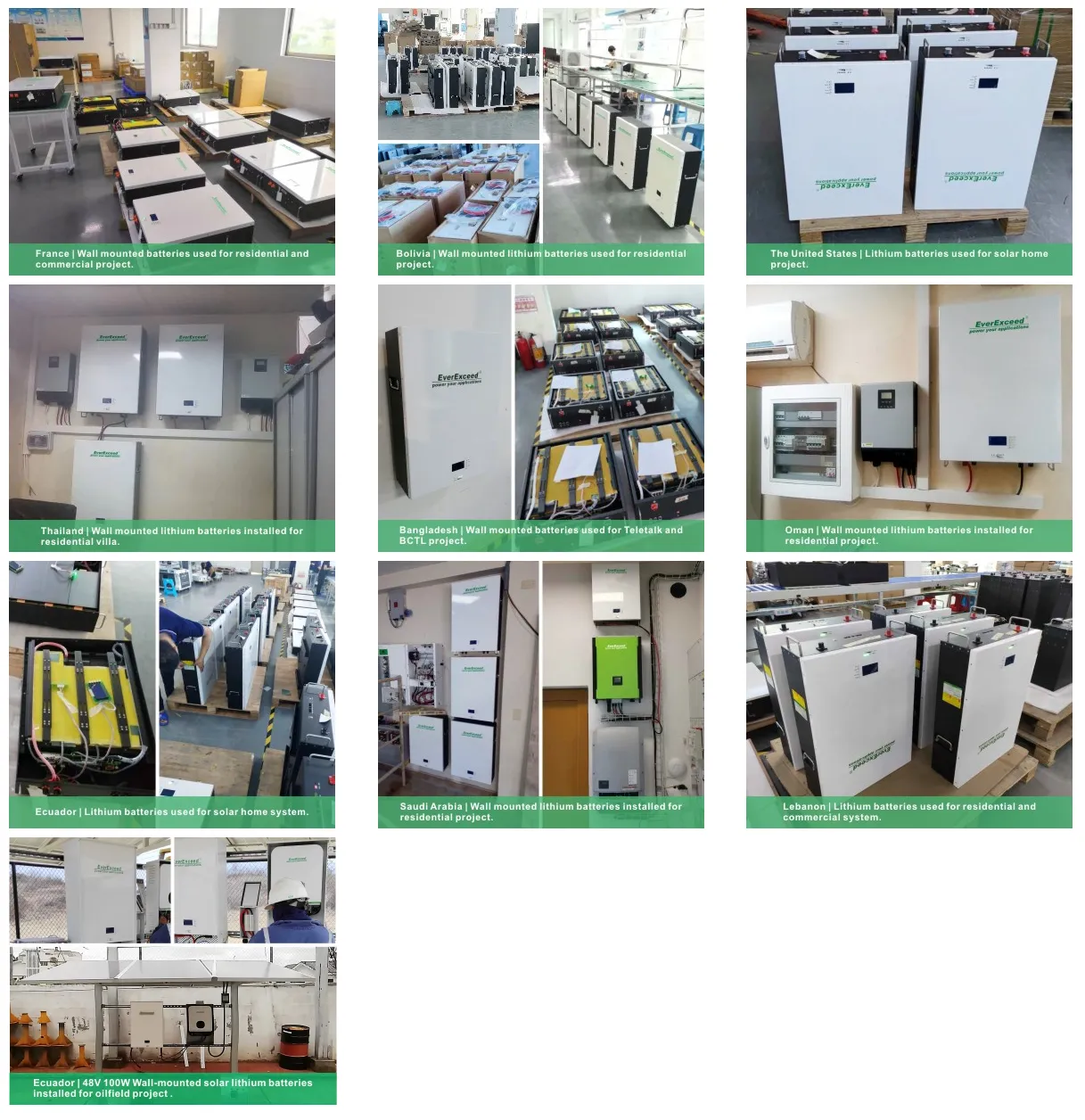

Successful Cases:
