EverExceed Stacked Lithium Battery is a Ground mounted lithium battery pack which consists of long life-span LiFePO4 battery cells and functional BMS.
Key Features:
 |  |  |
| Elegant design | Reliable | Flexible capacity expansion |
| Stack mounted high energy density | 5years warranty, newest lithium technology | 48V100Ah, up to 8 parallel expansion |
 |  |  |
| Longer cycle life | Communication interface | Safety standard |
| ≥6000 cycles | RS485/RS232/CAN/SNMP | CE, UN38.3 |
Features & Benefits:
>Wide compatibility
Compatible with most of the popular inverters on the market; such as SMA, SolarEdge,
Sungrow, Huawei, victron Energy. Schneider, Growatt, EverExceed, Ginlong/ Solis,
Sofarsolar, SolaX, Voltronic power, Deye, Goodwe, East etc*
>Save money & fast charging
6000+ life cycles @80% DOD:
5 years warranty;
15+ years design life,
Charges 5~6 times faster than VRLA;
Gets full charge within 1~2 hours;
Maintenance free throughout lifetime;
>High safety and reliable quality
LiFePO4 technology ensures no fire, no explosion;
24x7 hrs monitoring by user friendly BMS makes operation safe;
Over-voltage, under-voltage, over-current, under-current short circuit high and low
temperature protections;
View SOC & SOH in real time;
Support remote monitoring and diagnosis;
Car-level welding and assembly process, with the highest quality;
High quality cables and cable casing are used in the pack to avoid short circuit, and
high temperature damages;
Best grade materials used in every single pack casing with high quality terminals, LCD
or LED display and external cables.Confirm to safety standards of CE, UN38.3;
>Save space & easy installation
50% smaller, 70% lighter than VRLA battery
Ultra modern appearance, save more space
Plug & play, easy installation;
Drop in replacement for VRLA battery, without any additional labor cost
>Meet various capacity needs
Supports 2/3/4/5/6/7/8 battery packs in parallel
Up to10kWh/15kWh/20kWh/25kWh/30kWh/35kWh/40kWh
Flexibly customization according to customer needs
Parallel connection available for flexible system capacity extension;
Support OEM & ODM, the battery appearance can be designed according to customer
requirements.
Technical Data：
| Battery Type | LiFePO4 (Lithium iron phosphate battery) |
| Battery Model | EP-48100S |
| No.Of Cells In Series | 16 |
| Norminal Voltage | 51.2V |
| Norminal Capacity | 100Ah |
| Norminal Energy | 5.12KWh |
| Dimension (L x W x H) | 596*381*189mm |
| Weight | 45kg |
| Boost Charge Voltage (Charging Method: CC-CV) | 56-56.8V |
| Float Charge Voltage | 54.4-55.2V |
| Discharge Cut-off Voltage | 43.2V |
| Recommended Charge Current | 50A |
| Max Charge Current | 100A |
| Max Discharge Current | 100A |
| Working Temperature Range | Discharge: -20℃to +60℃ Charge: 0℃ to +60℃ Storage: -20℃ to +60℃ |
| Cycle Life | ≥6000 cycle @ 80%DOD @ 25℃@ 0.5C rate |
| Communication | RS485 / RS232 / CAN |
| Compatible Inverter* | SMA,SolarEdge,Sungrow,Huawei,Victron Energy,Schneider,Growatt,EverExceed,Ginlong/Solis,Sofarsolar,SolaX,Voltronic power, Deye, Goodwe, East etc* |
| Safety Standard | CE, UN38.3 |
| Design Life | 15+Years @ 25℃ |
| Support combination method | PACK*2/*3/*4/*5/*6 upto 10kWh/15kWh/20kWh/25kWh/30kWh （Supports 2/3/4/5/6 battery packs in parallel） |
Applications：
● Solar energy storage; ● Wind energy storage;

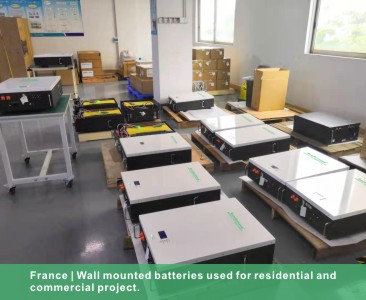

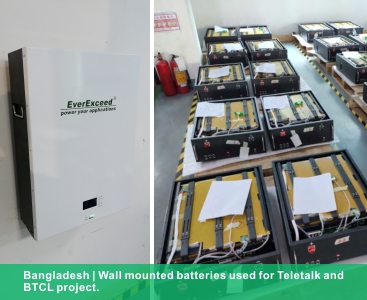

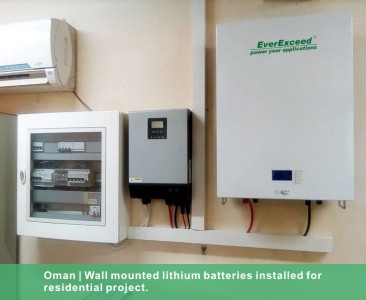

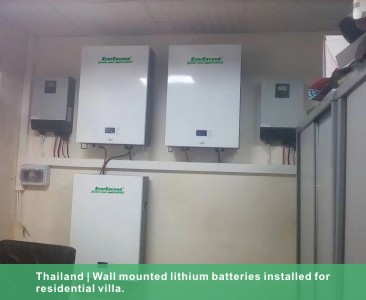

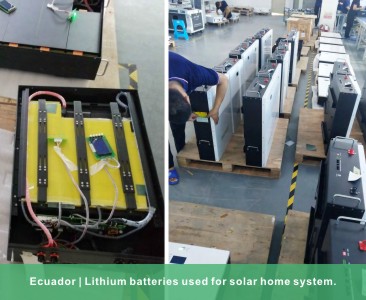

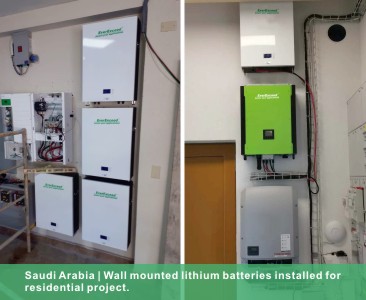

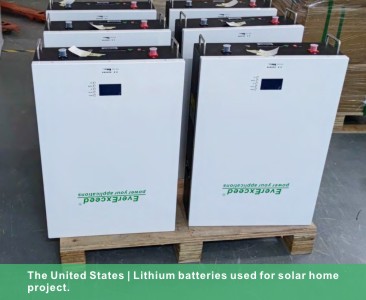

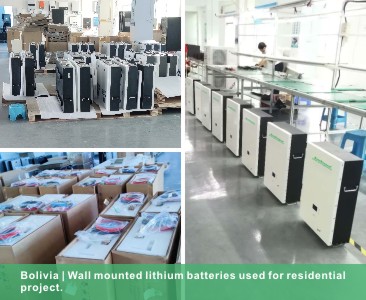

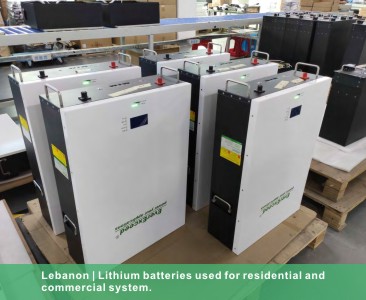

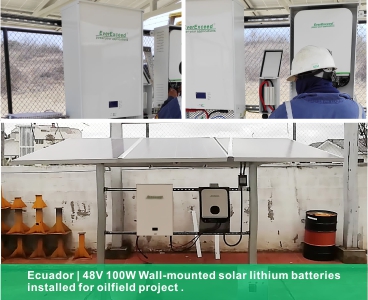

Successful Cases：
 |  |  |
 |  |  |
 |  |  |
 |
