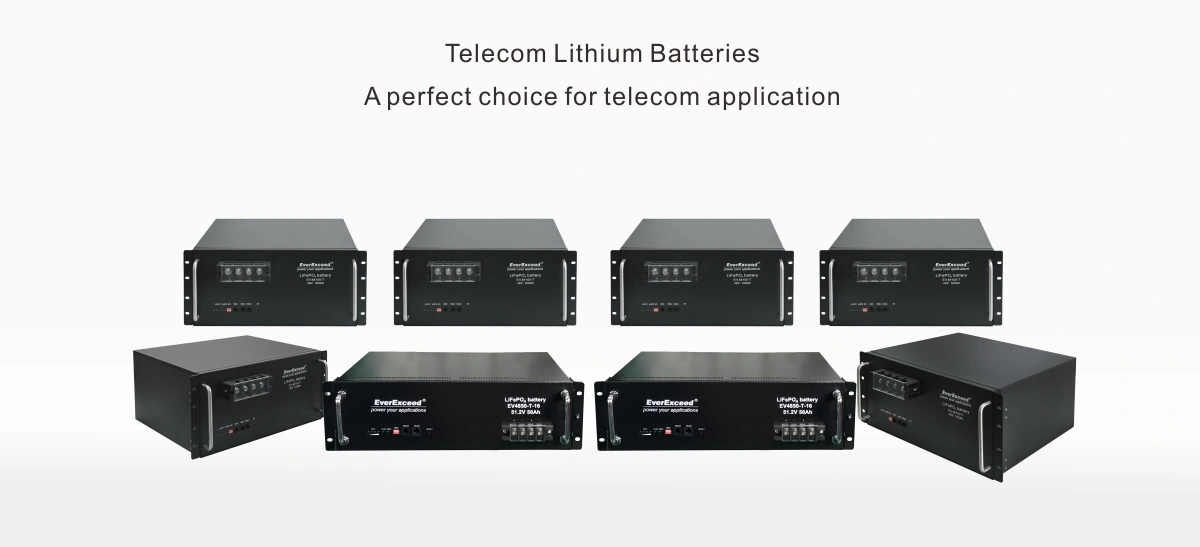

Telecom Lithium Ion Battery

EverExceed LFP lithium battery telecom solution is mainly used for the backup purpose of telecommunication industry; its performance is in compliance with the requirements in the telecommunication standard, with the adoption of LiFePO4 battery structure packing by flexible plastic film or aluminum alloy rigid packaging, it can satisfy the higher and new requirements of the telecom sector for the communication backup batteries.

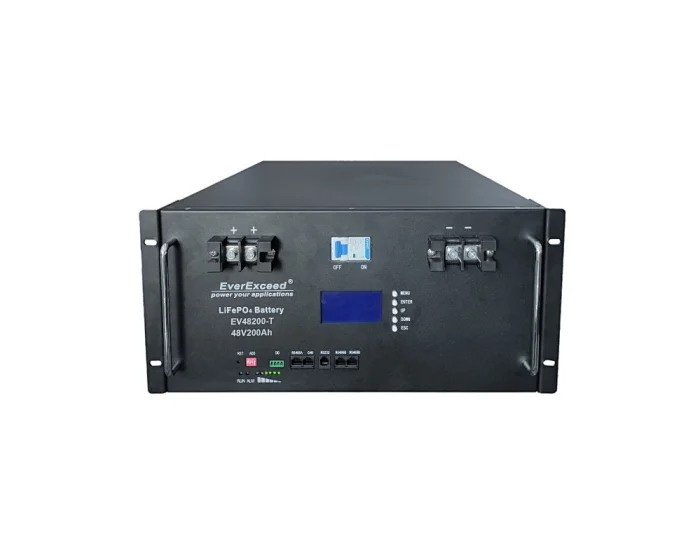

EV48200-T

Quantity:

High energy density Telecom Lithium Iron Phosphate Battery
EverExceed Telecom lithium batteries with high energy density & compact design are used for the backup battery of telecom industry and UPS

Key Features:



Superior Life Cycles	Fast charging	Easy replacement

3000+ life cycles, 3-10 times more than traditional lead acid battery	Can fully charge within 2-3 hours which is impossible for VRLA	Direct replacement of lead acid battery


More usable capacity	Parallel use	Easy Implementation

100% of usable energy, can be discharged without causing downtime	The battery supports paralleling of multiple battery packs for increased reserved time	No need to assign extra man power to install

Technical Data:

Nominal Characteristics
Battery Model	EV48200-T（15S)	Battery Model	EV48200-T(16S)
Nominal Voltage	48 V	Nominal Voltage	51.2V
Nominal Capacity	200 Ah	Nominal Capacity	200 Ah
Nominal Energy	9600 Wh	Nominal Energy	10240 Wh
Electrical Characteristics
Recommended Charging Voltage	54-54.7 V	Recommended Charging Voltage	57.6-58.4 V
Floating Charging Voltage	51.5-52 V	Floating Charging Voltage	55-55.5 V
Recommended Charging Current	50 A-100 A	Recommended Charging Current	50 A-100 A
Maximum Disharging Current	100 A	Maximum Disharging Current	100 A
Discharging Cut-off Voltage	40.5 V	Discharging Cut-off Voltage	43.2 V
Working Voltage Range	40.5-54.7 V	Working Voltage Range	43.2-58.4 V
Operating Conditions
Cycle Life	≥3000 Cycles@100% DOD@25℃	Cycle Life	≥3000 Cycles@100% DOD@25℃
Roundtrip Efficiency	≥98%	Roundtrip Efficiency	≥98%
Operating Charge Temperature	0℃ to +50℃	Operating Charge Temperature	0℃ to +50℃
Operating Discharge Temperature	-20℃ to +60℃	Operating Discharge Temperature	-20℃ to +60℃
Storage Temperature	-20℃ to +60℃	Storage Temperature	-20℃ to +60℃
Mechanical Characteristics
Length x Width x Height	483 x 550 x 222 mm	Length x Width x Height	483 x 630x 220 mm
Weight	71 Kg	Weight	75 Kg
Terminal	M6	Terminal	M6
Optional Function
Remote monitoring	SNMP
Anti-theft	GPS and Gyroscope

Applications:
Energy storage system / Solar application / Telecom application / Emergency lighting / Medical equipment

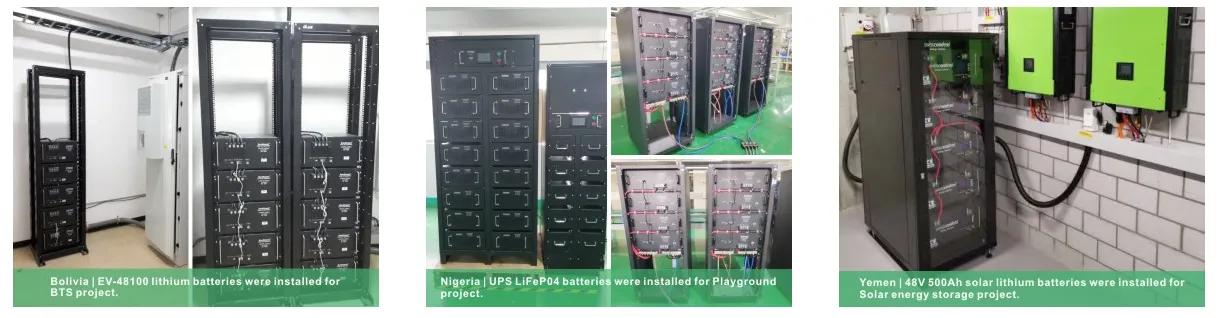

Successful Cases:
