EverGen Solar Series Energy Storage System
EverExceed EverGen Series ESS has the best backup energy storage solution to solve all the power problems where grid connection is not stable & reliable. It is a perfect solar power storage or Battery storage which can provide all home energy solution with excellent electricity consumption.
EGS5K-5E Pro/EGS5K-10E Pro/EGS5K-15E Pro/EGS5K-20E Pro
Quantity:
EverExceed EverGen Series ESS has the best backup energy storage solution to solve all the power problems where grid connection is not stable & reliable. It is a perfect solar power storage or battery storage which can provide all ESS with excellent electricity consumption.

ESS

Key features


ESSESSESS
Save up to 100% electricity cost24/7 uninterruptible power supplyEasy and quick installation
The sun delivers valuable energy to your home every single day - completely free of charge. A PV rooftop system combined with our energy system allows you to generate and use electricity for your home, save up to 100% on your energy costs, and actively help shape the energy transition.With the EverExceed perfect combination of high-quality inverter and battery, ensure you don't lose power ever. Now power all of your desired applications.Modular type design and Pre-installed at the factory for faster and easier installation.Only requires 30minutes for 1person to finish the installation procedure.
ESSESSESS
Smart & visualized management of your energyChild & pet friendlyHigh performance LiFePO4 Battery
Support mobile APP smart monitoring, help you to easily manage the energy at your finger tips.All in one design, completely safe from inside out. Can be easily placed inside home, no risk for your precious children to touch and damage.Up to 3000 cycles
ESSESSESS
Scalable & modular batteriesSolar power chargeSeamless backup
Maximum 4pcs of lithium battery boxMaximum 5KW solar panel inputTransition time is less than 20ms

EverExceed EP Series Lithium battery:

  1. 15+ years of design life @25℃;
  2. Optimized for photovoltaic applications,≥6000 cycles@80% DOD @ 25℃;
  3. Fast chargingESS technology, can be fully charged within 3 hours, 4-5 times faster than lead acid battery;
  4. The EverExceed lithium batteries, due to their excellent properties, are the optimal energy storage solution where limited space and weight are important factors;
  5. 98% round trip efficiency, 20% high than lead acid battery,  ESS save your energy cost a lot.
  6. As EverExceed LiFePO4 batteries adopt the most advanced lithium iron technology, here is no risk of explosion and fire. It is designed for residential and commercial applications with absolute safety;
  7. The battery system adopts a special BMS, high performance battery management module which is featured with voltage, current and temperature ESS protection and a preferable communication between the battery system and the host.
  8. With CE,IEC62619 certification.

ESS

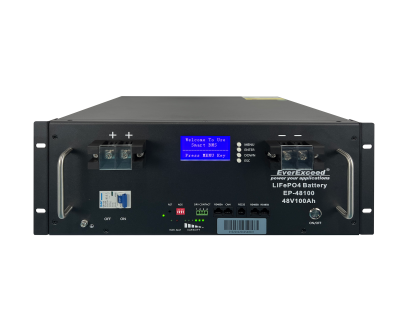

High quality Solar Lithium battery

EverExceed EP Series battery



Operational diagram
ESS

 Technical specifications

EverGen Solar ESS:

ModelEGS5K-5E ProEGS5K-10E ProEGS5K-15E ProEGS5K-20E Pro
System Specification
Rated AC Output Power5000VA/5000W
Surge AC Output Power10000VA
Energy Capacity Range5.12kWh10.24kWh15.36kWh20.48kWh
Battery TypeLithium iron phosphate battery
Max. AC Charging Current80A
Max. PV Charging Current80A
Max. Total Charging Current80A
Operating TemperatureCharge:0℃ to 50℃ / Discharge: -20℃ to 60℃
Storage Temperature-30℃ to 70℃
Remote MonitoringWiFi & APP (Optional)
Relative Humidity0~95%(no condensation)
Operating Altitude 2000m
Protection DegreeIP21
System DimensionW600mm600mm600mm600mm
D400mm400mm400mm400mm
H900mm900mm1450mm1450mm
Weight107kg155kg224kg272kg
Certification and StandardsCertificates: CE, RoHS, UN38.3
Standards: IEC62619, EN 61000-6-1, EN61000-6-3, EN61000-3-2, EN61000-3-3
PV String Input Specification
Max. DC Input Power5500W
Max. DC Input Voltage450VDC
MPPT Voltage Range120 to 430VDC
Max. PV Charging Current80A
Number of MPPTs1
Number of Strings per MPPT1
Inverter Specification
Rated AC Output Power5000W
Surge AC Output Power10000VA
Battery Recommended Voltage48VDC
AC Input Voltage90Vac to 280Vac
AC Output Voltage230Vac
Rated Frequency50 / 60Hz
Max. AC Charging Current80A
Power Factor1.0
AC Output Wave FormPure Sine Wave
Transfer Time＜10ms
Output THDi<3%
Max. Conversion Efficiency≥94%
Inverter Module Dimension(W*D*H)600*400*350mm
Battery Specification
Battery Module ModelEP-48100
Battery Module Dimension(W*D*H)600*400*550mm
Battery Quantity1234
Norminal Capacity100Ah
System Norminal DC Voltage51.2V
Energy Capacity5.12kWh10.24kWh15.36kWh20.48kWh
Cycle Life＞6000 cycles@80% DOD




EverGen Solar-LV ESS

ModelEGS5K-5E-LV ProEGS5K-10E-LV ProEGS5K-15E-LV ProEGS5K-20E-LV Pro
System Specification
Rated AC Output Power5000VA/5000W
Surge AC Output Power10000VA
Energy Capacity Range5.12kWh10.24kWh15.36kWh20.48kWh
Battery TypeLithium iron phosphate battery
Max. AC Charging Current60A
Max. PV Charging Current80A
Max. Total Charging Current80A
Operating TemperatureCharge:0℃ to 50℃ / Discharge: -20℃ to 60℃
Storage Temperature-30℃ to 70℃
Remote MonitoringWiFi & APP (Optional)
Relative Humidity0~95%(no condensation)
Operating Altitude 2000m
Protection DegreeIP21
System DimensionW600mm600mm600mm600mm
D400mm400mm400mm400mm
H900mm900mm1450mm1450mm
Weight107kg155kg224kg272kg
Certification and StandardsCertificates: CE, RoHS, UN38.3
Standards: IEC62619, EN 61000-6-1, EN61000-6-3, EN61000-3-2, EN61000-3-3
PV String Input Specification
Max. DC Input Power5500W
Max. DC Input Voltage500VDC
MPPT Voltage Range120 to 450VDC
Max. PV Charging Current80A
Number of MPPTs1
Number of Strings per MPPT1
Inverter Specification
Rated AC Output Power5000W
Surge AC Output Power10000VA
Battery Recommended Voltage48VDC
AC Input Voltage90Vac to 140Vac
AC Output Voltage120Vac(100/105/110Vac settable)
Rated Frequency50 / 60Hz
Max. AC Charging Current80A
Power Factor1.0
AC Output Wave FormPure Sine Wave
Transfer Time＜10ms
Output THDi<3%
Max. Conversion Efficiency≥90%
Inverter Module Dimension(W*D*H)600*400*350mm
Battery Specification
Battery Module ModelEP-48100
Battery Module Dimension(W*D*H)600*400*550mm
Battery Quantity1234
Norminal Capacity100Ah
System Norminal DC Voltage51.2V
Energy Capacity5.12kWh10.24kWh15.36kWh20.48kWh
Cycle Life＞6000 cycles@80% DOD


Application

Home, apartment or villa, Shops and groceries for small business, Small office or enterprise, Bank, ATM or financial institute, Clinic, health care or medical centers, School or baby care center
