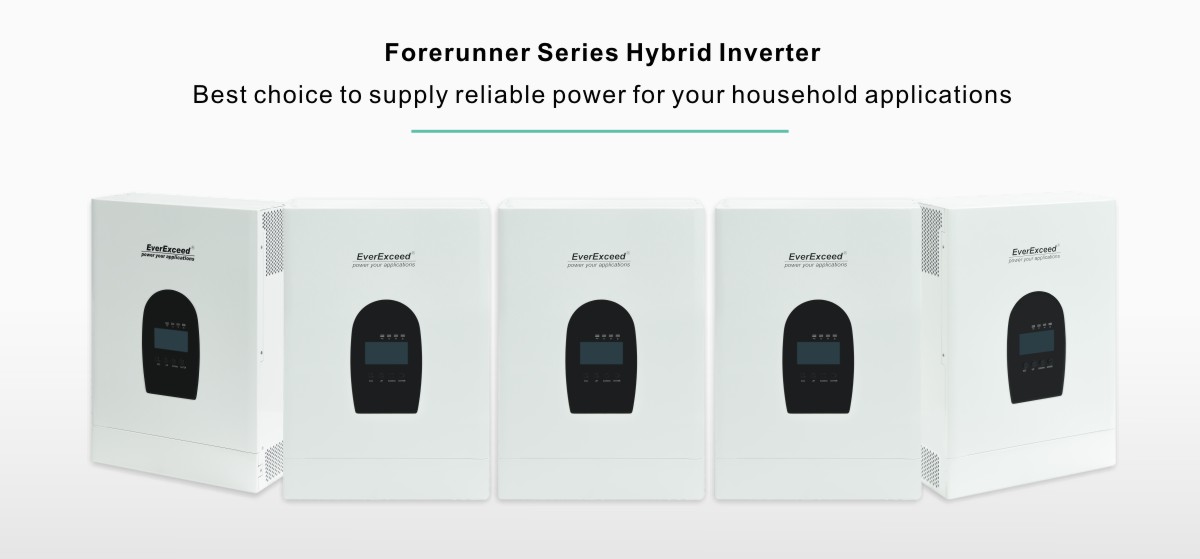

Forerunner Series Hybrid Inverter
The forerunner series inverter is a high-end solar hybrid inverter, which uses the best core components to ensure the longest service life. It utilizes solar power, batteries, and utility grid for hybrid power supply to ensure uninterrupted power supply of your home. It can help you use solar power as much as possible, cut your energy costs permanently, for optimal consumption. Helping you with Less dependence on energy providers and no more worries about rising electricity prices.
FR-3K/FR-5K
Quantity:
The forerunner series inverter is a high-end solar hybrid inverter, which uses the best core components to ensure the longest service life. It utilizes solar power, batteries, and utility grid for hybrid power supply to ensure uninterrupted power supply of your home. It can help you use solar power as much as possible, cut your energy costs permanently, for optimal consumption. Helping you with Less dependence on energy providers and no more worries about rising electricity prices.



Key features
High Performance

High Compatibility

Full Protection

Pure sine wave output, selectable charging current based on applicationPerfect match for a variety of batteries: Lithium, AGM,GEL, etc.Battery reverse connection protection. Perfect protection function, with Short circuit / over voltage / over temperature / overload / Reverse current protection.
Smart MonitoringFlexible capacity expansionFast charging
Support APP remote monitoring with WIFI module (optional)Up to 9 units in parallel for fast expansion.Max support 80A for fast charging.


Technical specifications:​​​​

ModelFR-3KFR-5K
AC InputInput Voltage208/220/230/240Vac
Voltage Range154-264Vac (Normal Mode) /185-264Vac (UPS Mode)
Frequency50/60Hz
AC OutputRated Power3000W5000W
Output Voltage208/220/230/240Vac
Frequency50/60Hz
WaveformPure Sine Wave
Transfer Time<20ms (Normal Mode)/<10ms(UPS Mode)
Peak Power6000VA10000VA
Overload Capacity
(Inverter Mode)		102-110% load,  60s
110-130% load,  10s
130-150% load,  3s
＞150% load,  20ms
Conversion Efficiency≥94%
BatteryReted Voltage24VDC48VDC
Constant Charge Voltage
(Adjustable)		28.2VDC56.4VDC
Float Charge Voltage (Adjustable)27.0VDC54.0VDC
ChargePV Charge ControllerMPPT
Max. PV Power3500W5500W
Max. PV Input Voltage450VDC
MPPT Voltage Range120-430VDC
Max. PV Charge Current80A
Max. AC Charge Current80A
Max. Total Charge Current80A
Remote MonitoringWIFI ModuleRemote monitoring by mobile APP(optional)
ParallelParallel CardSupport max. 9pcs inverters in parallel
GeneralOperating Temperature-10℃-55℃
Storage Temperature-20℃-60℃
Max. AltitudeMax. 4000m (>1000m Inverter reduces power output)
Humidity5%-95%, No condensation
Noise＜50dB
Dimension(LxWxD)440x300x120mm
Weight10.9kg

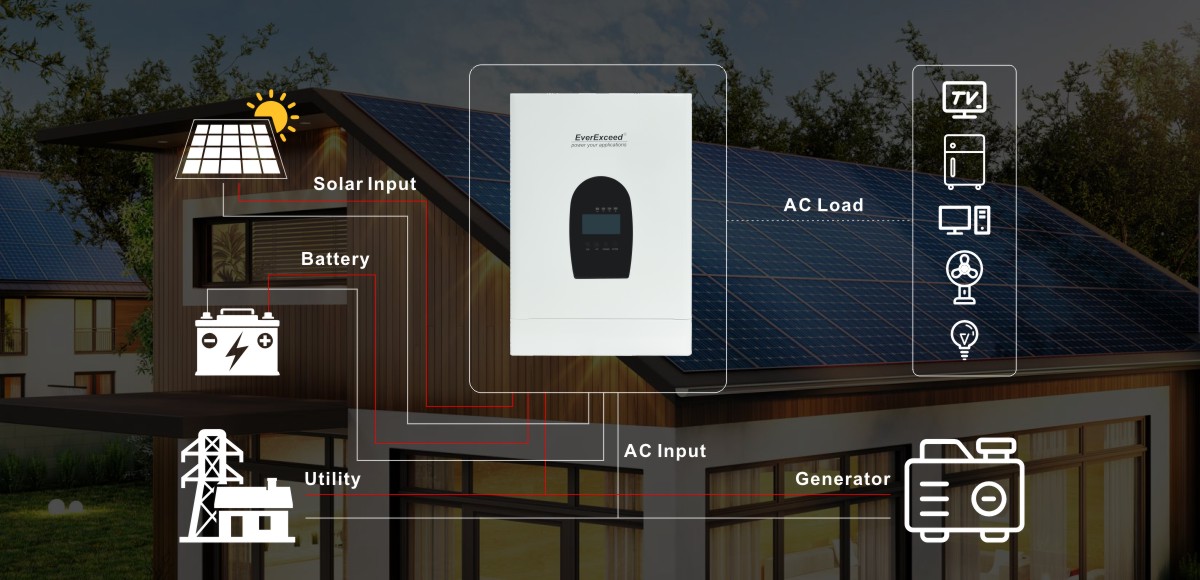

Operational Diagram
