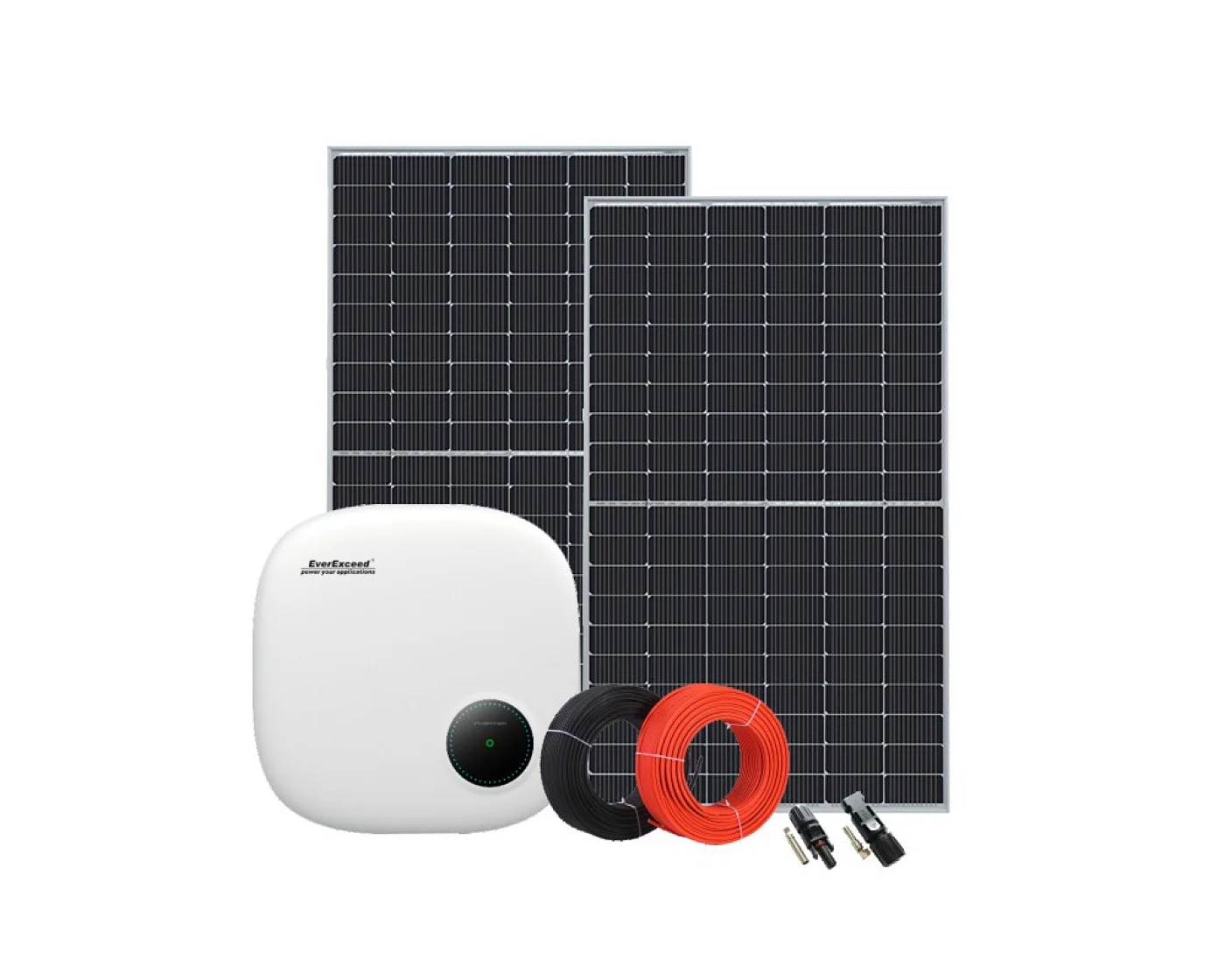

On-Grid Solar System With Inverter

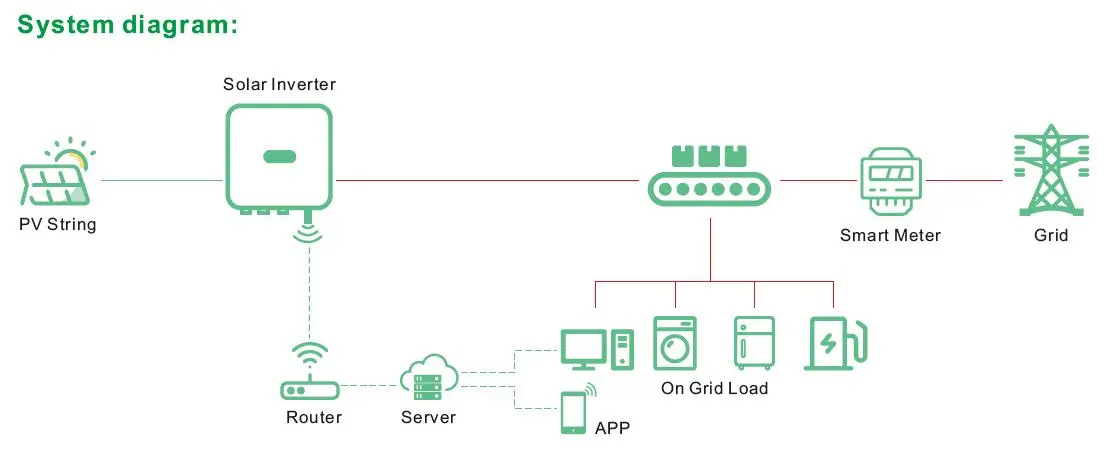

The solar system is mainly composed of solar panel, on grid inverter. In daytime, when there is enough light during the day, the inverter supplies power to the load through solar panel, and at night the inverter supplies power to the load through the mains to ensure the continuity of the load operation to utilize the renewable energy.
ESG Series
Quantity:
The solar system is mainly composed of solar panel, on grid inverter. In daytime, when there is enough light during the day, the inverter supplies power to the load through solar panel, and at night the inverter supplies power to the load through the mains to ensure the continuity of the load operation to utilize the renewable energy.


Advantage of the solar panel:

  1. Using 182mm*182mm size high-efficiency monocrystalline silicon cell production, the module has excellent performance in space utilization and efficiency;
  2. Efficiency≥20.79%;
  3. Ensure the positive tolerance of module +5W, module power ≥450W;
  4. Low open circuit voltage.

Advantage of the on-grid inverter:
  1.  Multiple MPPT input channels;
  2.  Remote operation via WiFi module;
  3.  High-quality imported components, excellent reliability and stability.
Advantage of the solar cable and accessories:
  1.  Adopt DC high voltage circuit breaker, DC withstand voltage 1500V, high reliability.

Advantage of the solar panel mounting bracket:

  1. The type of mounting bracket can be adjusted according to the installation environment;
  2. The bracket material is made of Q235 hot-dip galvanized steel, which is corrosion-resistant.


Technical specifications
ModelESG-3kWESG-5kWESG-6kWESG-8kWESG-10kW
450W Solar Panel6 Piece12 Piece12 Piece18 Piece24 Piece
On-grid Inverter3kW5kW6kW8kW10kW
PV Cable 4mm230m60m60m30m60m
MC4 Connector2pair2pair2pair2pair2pair
Mounting SystemGround or Roof(Customized Optional)
