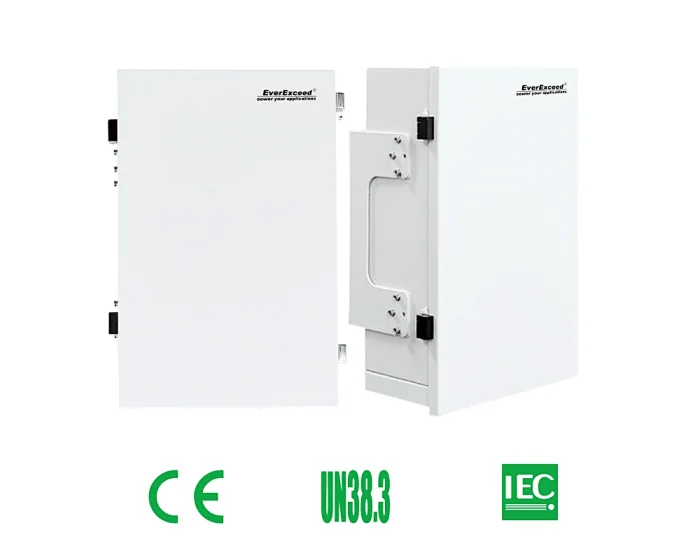

Power Safe High Quality 6000 Cycles 48V 10ah 5kwh LiFePO4 Battery For 5g Telecom Base Tower

EverExceed EV series LiFePO4 adopts high energy density and conversion efficiency of lithium technology in excellent energy-saving performance and longer lifespan. They enable smooth site capacity expansion to support 5G evolution, cutting costs and shortening 5G deployment time. And they are designed with small size, high-quality insulation materials, and strong anti-theft safety locks. All these advantage make them highly safer, smarter, and simpler for telecom 5G micro base stations.

EV4805-T/EV4810-T/EV4820-T

Quantity:

Power Safe High Quality 6000 Cycles 48V 10ah 5kwh LiFePO4 Battery for 5g Telecom Base Tower

power


Key Features
Safer 15+years of design life, the longer service life of >3000 cycles. The highly stable LFP cell removes fire risks if thermal runaway occurs. Optional heating function and internal insulation design for better environmental adaptability. The hardest lock to improve energy storage security and prevent stealing. BMS with internal cell balancing function to ensure the battery is adequately protected.
		Smarter Intelligent automatic protection for overcharge, discharge, and temperature conditions. Faster charging up to 90% in one hour by Bluetooth APP control. RS485/CAN communication output. Monitor the power supply by connecting the APP to avoid the impact of overcharging on battery life. High power density generates a 70% smaller footprint than lead-acid batteries. An intelligent battery management system cuts daily O&M costs by 80%.
Simpler Faster charge, 1 hour of charging can provide up to 90% charge. No maintenance is required throughout the lifetime. Small size design makes it easier and simpler to install.

Applications

Base transceiver station; Communication equipments; Telecommunication system.

Nominal Characteristics
Battery Model	EV4805-T	EV4810-T	EV4820-T
Nominal Voltage	48 V	48 V	48 V
Nominal Capacity	5 Ah	10 Ah	20 Ah
Nominal Energy	240 Wh	480 Wh	960 Wh
Electrical Characteristics
Recommended Charging Voltage	54 V
Floating Charging Voltage	52 V
Recommended Charging Current	2.5 A	5 A	10 A
Maximum Charging Current	5 A	10 A	20 A
Maximum Discharging Current	15 A	30 A	60 Ah
Discharging Cut-off Voltage	42 V	42 V	42 V
Working Voltage Range	42-54 V	42-54 V	42-54 V
Operating Conditions
Cycle Life	≥3000 Cycles@100%	≥3000 Cycles@100%	≥3000 Cycles@100%
Cycle Life	DOD@25℃	DOD@25℃	DOD@25℃
Roundtrip Efficiency	≥98%	≥98%	≥98%
Operating Charge Temperature	0℃ to +50℃	0℃ to +50℃	0℃ to +50℃
Operating Discharge Temperature	-20℃ to +60℃	-20℃ to +60℃	-20℃ to +60℃
Storage Temperature	-20℃ to +60℃	-20℃ to +60℃	-20℃ to +60℃
Mechanical Characteristics
Mechanical Characteristics
Length x Width x Height	380 x 220 x 145 mm	380 x 220 x 145 mm	430 x 320 x 150 mm
Weight	8.0 Kg	10 Kg	15 Kg
Terminal	M4	M4	M6
IPGrade	IP 55
Optional Function
Remote monitoring	Bluetooth
Others	Heating
