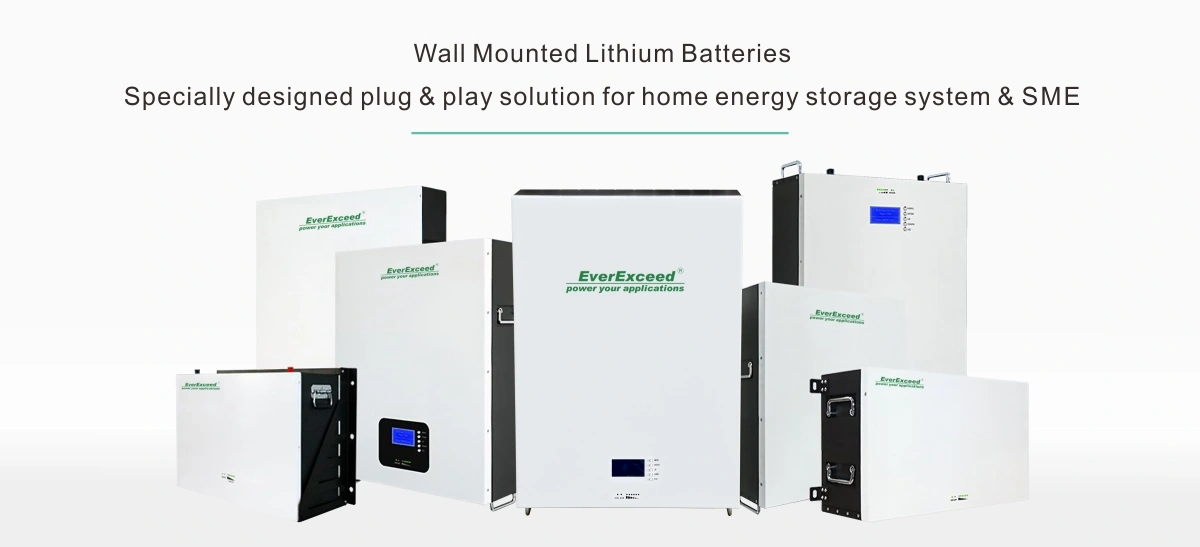

Batería de pared para el hogar de almacenamiento de energía 51.2V 100ah batería solar de litio son la elección perfecta para su hogar + sistema de almacenamiento de energía y las PYME (pequeñas y medianas empresas).
Technical features：
 |  |  | ||
| Expansion capability | Easy installation | High reliability | ||
| Parallel connection available for flexible system capacity extension | Suitable for both rack and wall mounted installation | High operational reliability | ||
 |  |  | ||
| Safety | Superior deep cycle ability | Zero maintenance | ||
| No risk of explosion & fire | Superior deep cycle ability provides highly efficient cycling and float service with great energy density | No need for maintenance, saves opex for user |
Product advantages:
>Wide compatibility
Fully compatible with most inverters on the global market,
such as SMA, SolarEdge, Sungrow, Huawei, Victron Energy, Schneider, Growatt,
EverExceed, Ginlong, Sofarsolar, SolaX, East, Deye, etc.'
>Compact Size
Ultra-compact design,low weight;
Wall mounted, save the installation space;
High energy density standby power.
>Long service life and high reliability
15+ years long life design@25°C ;Adopt approved grade A cells to ensure high safety and premium performance of the battery; High operational reliability.
>IP65 Waterproof design
Fully enclosed appearance , waterproof
rubber ring is used before fixing screws
Waterproof film in display Wiring terminals
made of waterproof end aerial plugs A
waterproof box is also added to the dialing address
>Modular design
Parallel connection available for flexible
system capacity extension

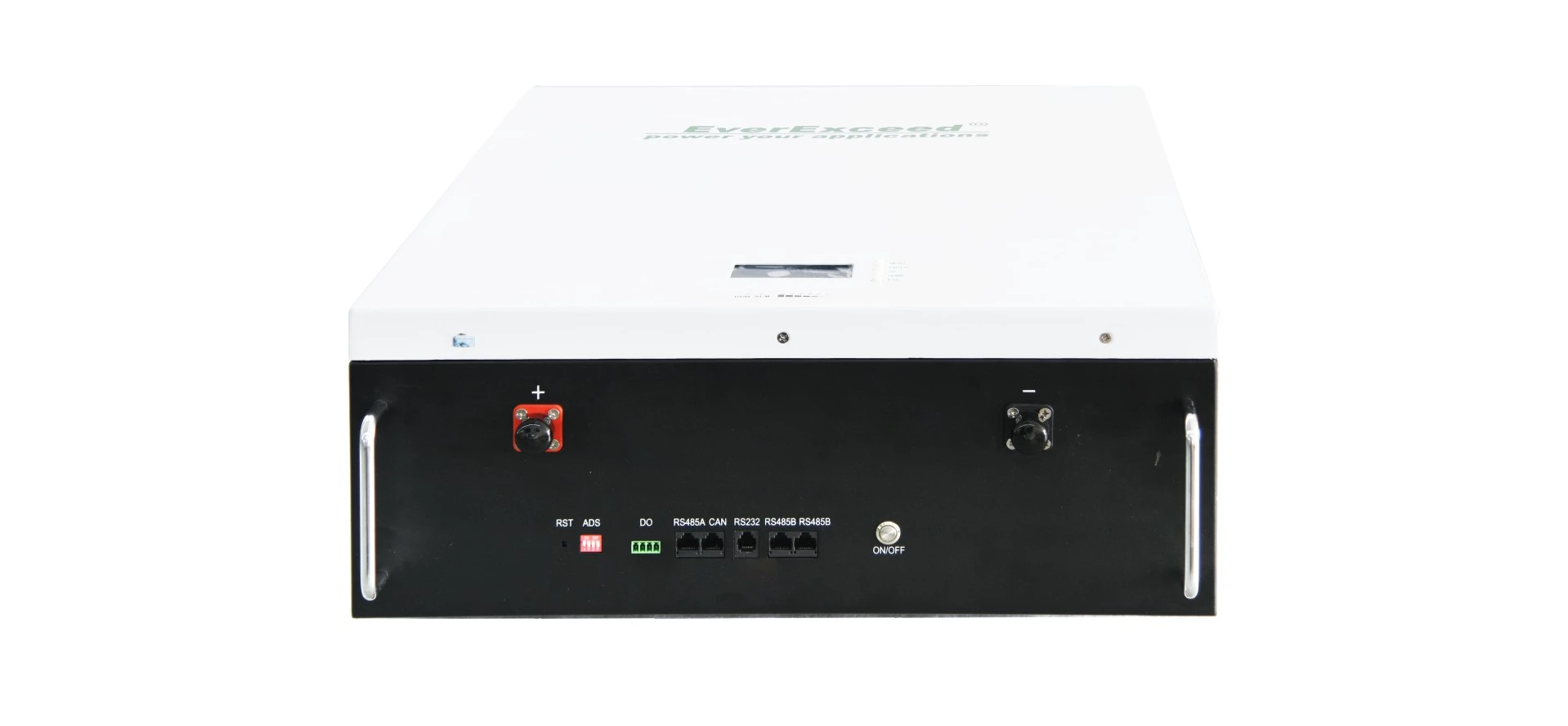

| Battery Model | EP-48100W（15S） | EP-48100W（16S） |
| EP-48100W | EP-48100 | |
| Nominal Voltage | 48 V | 51.2V |
| Nominal Capacity | 100 Ah | 100 Ah |
| Nominal Energy | 4800 Wh | 5120 Wh |
| Electrical Characteristics | ||
| Boost Charge Voltage | 54-54.75 V | 57.6-58.4 V |
| Floating Charging Voltage | 51.5-52 V | 55-55.5 V |
| Recommended Charging Current | 50 A | 50 A |
| Maximum Disharging Current | 100 A | 100 A |
| Discharging Cut-off Voltage | 40.5 V | 43.2 V |
| Working Voltage Range | 40.5-54.75 V | 43.2-58.4 V |
| Operating Conditions | ||
| Cycle Life | ≥6000 Cycles@80% DOD@25℃ | |
| Roundtrip Efficiency | ≥98% | |
| Operating Charge Temperature | 0℃ to +50℃ | |
| Operating Discharge Temperature | -20℃ to +60℃ | |
| Storage Temperature | -20℃ to +60℃ | |
| Mechanical Characteristics | ||
| Height x Width x Depth | 650 x 485 x 180 mm | 650 x 485 x 180 mm |
| Weight | 65Kg | 70 Kg |
| Other | ||
| Protocol（optional） | RS232-PC RS485(B)-PC RS485 (A)-Inverter CANBUS-Inverter | |
| Communication | RS485/RS232/CAN | |
| Compatible Inverter | SMA, SolarEdge, Sungrow, Huawei, Victron Energy, Schneider, Growatt, EverExceed, Ginlong, Sofarsolar, SolaX, East, Deye, etc.* | |
| Safety Standard | IEC62133,CE,UN38.3 | |
| Design Life | 15+ Years@25℃ | |
Applications：
